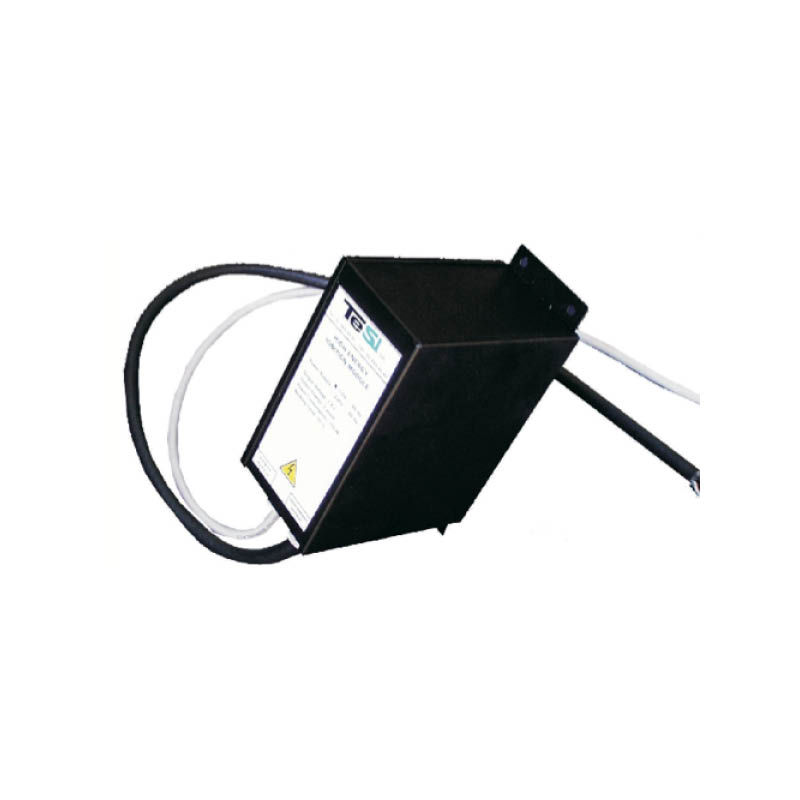

XEC03
The new ignition module is capable of supplying a good spark with up to a 500 meter cable length.
The spark generation circuit is different from the old HE ignition unit, Xec18, so the spark is now able to ignite low quality fuels as well.
The new housing is filled with resin, ensuring waterproof performance of the unit, which is particularly important in outdoor applications.
Fuel Types: All Gases
Markets Served: All, especially flares and process burners
Special Features: This low cost unit is best suited to gas burners and can easily ignite flares at a distance of 500m between power pack and ignition lance. It is a favourite amongst OEM's.
Product Info
10 ~ 230 VAC input
2~4 sparks per second
3 or 18 Joules of energy per spark
1000 vdc output
Encapsulated design suitable for outdoor installation.
Can operate with up to 500m of cable
Best choice for flares
1m flying leads as standard
Can be fitted with quick disconnect fittings
Part Numbers
-
PDF Manuals
Certificates
-
Technical Data
Power Supply Unit
Input Voltage | 115-230 Vac 50/60 Hz |
Output Voltage | 1000 Vdc |
Output Energy (Per Spark) | 18 J |
Spark Rate | 2 Sparks/second |
Input Power | 50 Watt |
Enclosure
Protection Class | IP65 |
Material | Powder coated steel |

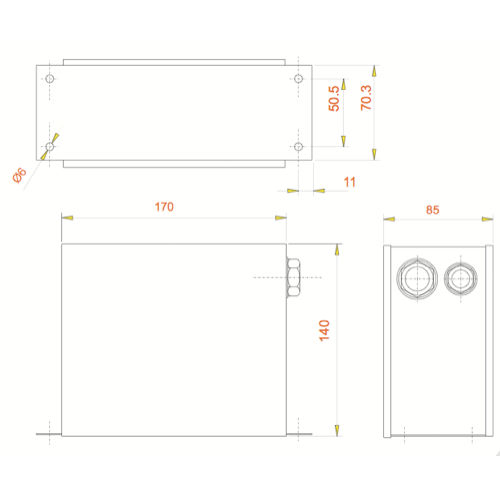

Dimensions | 170 x 140 x 85 |
Weight | 2,5 kg |
Additional Specs
In-Out Connections | Two cables 1 meter long |
Input Voltage | 12/24 VDC (on demand) |
