XEC10

Tesi's High Energy Ignition System can be used to directly ignite oil and gas burners. As a Class 3 Igniter, the output energy of up to 10 Joules provides powerful sparks with a rate of 24 sparks/sec. as a standard.



The circuit is provided with a regulator on the main inlet so that the sparks rate can be finely adjusted ( by TESI accordingly to customer request). This circuit is also able to monitor :

  • Transformer temperature and prevent any damage due to over temperature;
  • Transformer max current, capacitor max voltage, spark down rate(<2);
  • Max working time.

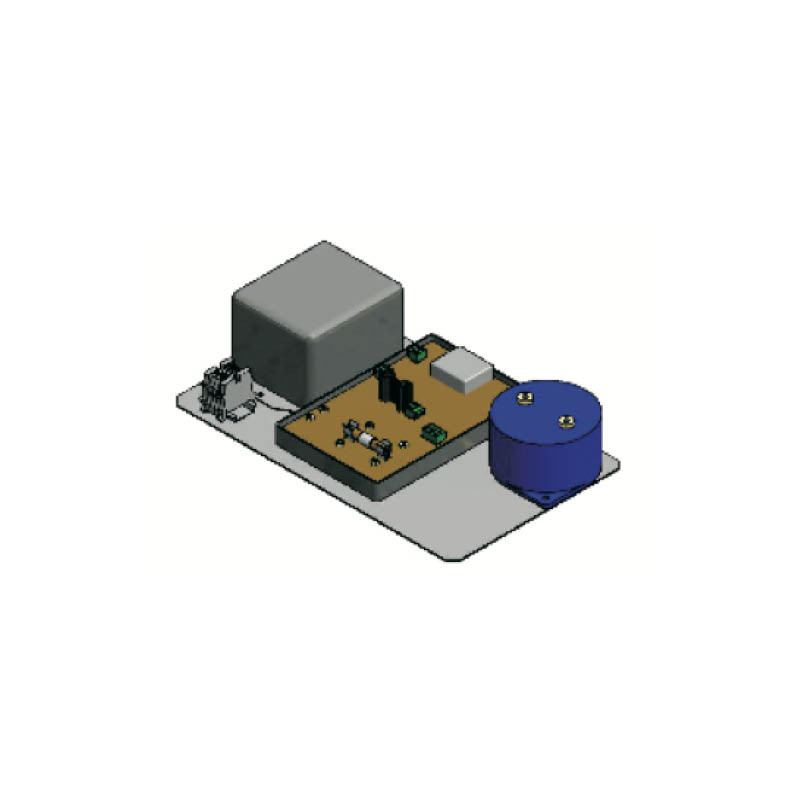

Tesi's High Energy system can be utilized in both Safe and Hazardous areas. The main components for both applications consist of a Power Pack unit installed in an enclosure box suitable for wall mounting, a High Energy rod complete with a replaceable spark tip and an high voltage connecting cable. Standard production consists of a rigid ignition rod, but a flexible configuration can be realized for tilting tangential applications.

Product Info

  • High reliability: The powerful sparks ensure ignition in all conditions and environments with no risk of failure due to contaminants or humidity.
  • Low maintenance: Self-cleaning spark tips guarantee successful ignition. In fact the high power of the spark cleans the surface of the tip during every ignition.
  • Easy & Fast maintenance: Spark tips screw onto the end of the rod can be replaced quite easily, reconditioning the system very quickly and reducing maintenance costs.
  • Accessories & spare parts: A wide range of accessories and spare parts on stock can be quickly supplied and allows for customization of the systems according to customer specification

Part Numbers

-

PDF Manuals

Datasheet

Certificates

-

Technical Data

Import Voltage 115 or 230 VAC 50 Hz (60 Hz on demand)
Imput Current MAX 10 A RMS Current "6 A (at 24 Sp/Sec)
Imput Power According Sparks Rate "700W (at 24 Sp/Sec)
Output Voltage 1400 V +/- 10%
Output Energy 10 J Each Spark +/- 10%
Working Time Not for continuous service According to Sparks Rate Max 1 Minutes ON / Min 2 minutes OFF / Max 3 sunsequent sequences (at 24 Sp/Sec)
Spark Frequency 24 spark/second
Working Temperature -5 + +60°C On Request -30 + +60°C
Protection grade IP66 On request other options
