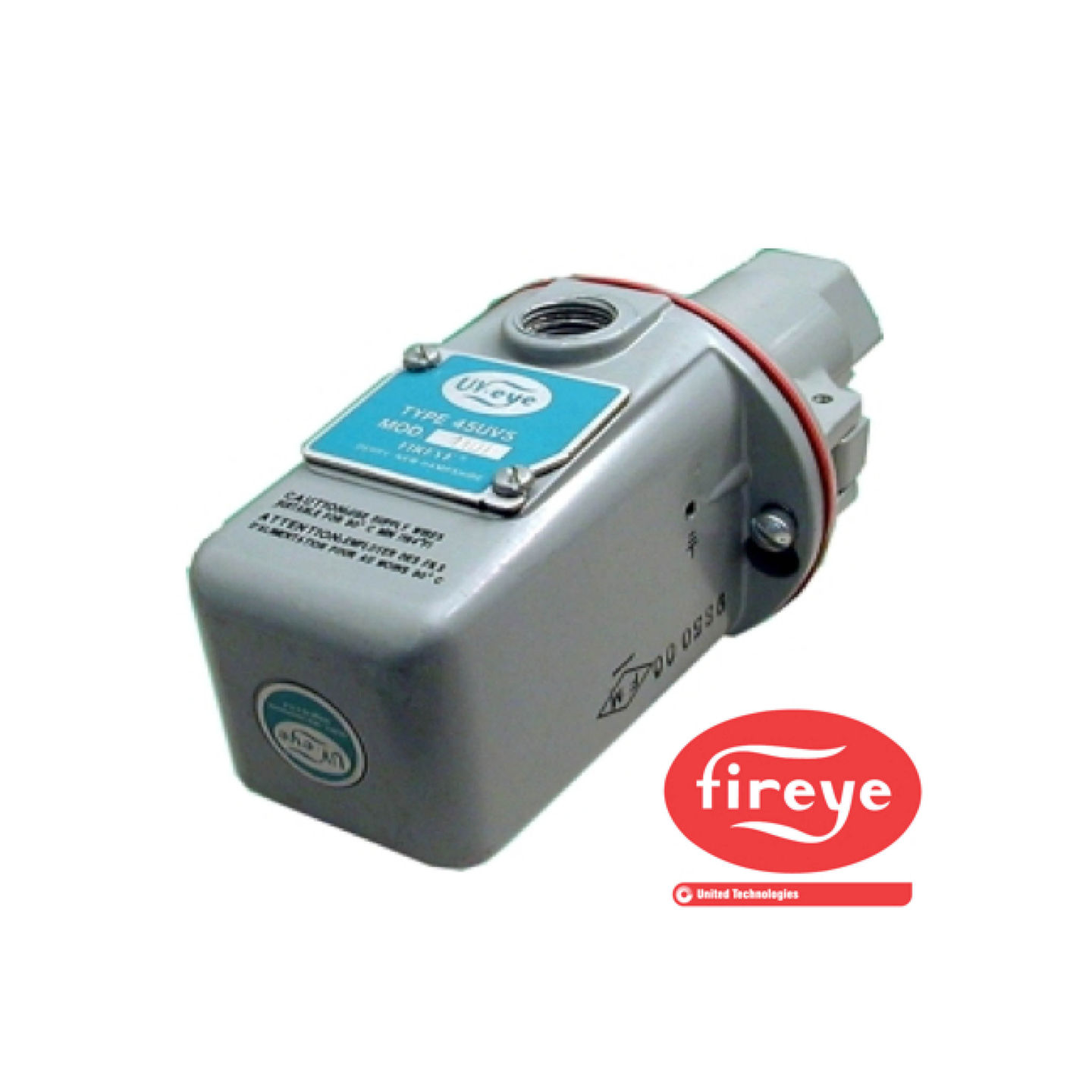

45UV5-1007
Fireye's rugged self checking UV Flame Scanner.
Features
UV TUBE
1" BSP Mounting Flange
102VAC to 264VAC
Optical range 190 – 270 nm – Solar blind
For clean gaseous and oil fuels
Limited discrimination capabilities - for single burner applications
Self checking with electromagnetical shutter allows continuous operation
Used with Fireye controls FlameMonitor, Flameworx, BurnerLogix, D-Series
Powered by control
Wide temperature range -40 to +93°C
Explosion proof housing available ATEX Ex d IIC T6
Please note that the 45UV5-1008 is now obselete as the 45UV5-1007 can be used with voltages 102VAC to 264VAC.
Models In This Range
PART NUMBER | MANUAL NUMBER | DESCRIPTION |
|
|
|
45UV5-1005 | SC-101 | UV self-check scanner, 1" NPT, 8' lead, use with P-Series or MicroM / E-Series/BurnerLogix with 61-5745-3 drive circuit. |
45UV5-1105 | SC-101 | UV self-check scanner, 1" BSP, 8' lead, use with P-Series. |
45UV5-1006 | SC-101 | UV self-check scanner, 8' lead, use with D-Series 72DUVS1. |
45UV5-1007 | SC-101 | UV self-check scanner, 1" BSP, 102 - 264 VAC shutter. Use with 72DUVS1T, 72DUVS4 BurnerLogix, E-Series, MicroM, FlameWorx II.. |
45UV5-1007W | - | Replace with 55UV5-1007. |
45UV5-1008 | SC-101 | Replace with 45UV5-1007 |
45UV5-1009 | SC-101 | UV self-check scanner, 1" NPT, 102 - 264 VAC shutter. Use with 72DUVS4, 72DUVS1T, BurnerLogix, E-Series, MicroM, FlameWorx II. |
45UV5-1009W | - | Replace with 55UV5-1009 |
45UV5-1005CEX | SC-101 | Cenelec EExd IIC explosion proof housing with 45UV5-1005 scanner. |
45UV5-1005EX | SC-101 | NEMA 7, Class 1, Div 1 and 2, Groups C and D; Class 2, Div 1 and 2, Groups E, F, and G housing with 45UV5-1005 scanner. |
45UV5-1007CEX | SC-101 | Cenelec EExd IIC explosion proof housing with 45UV5-1007 scanner. Includes 35-130 mounting flange. |
45UV5-1007EX | SC-101 | Use 55UV5-1007 unless Class 1, Div 1 certification is required.. |
45UV5-1009CEX | SC-101 | Cenelec EExd IIC explosion proof housing with 45UV5-1009 scanner. Includes 35-128 mounting flange. |
45UV5-1009EX | SC-101 | Use 55UV5-1009 unless Class 1, Div 1 certification is required.. |
55UV5-1007 | SC-106 | UV self-check scanner. Meets Class 1, Div 2, Groups A, B, C, and D, NEMA 4X. 1" BSP, 102 - 260 VAC, 50/60 Hz. |
55UV5-1009 | SC-106 | UV self-check scanner. Meets Class 1, Div 2, Groups A, B, C, and D, NEMA 4X. 1" NPT, 102 - 260 VAC, 50/60 Hz. |
